pET- 22b, 2 ug

https://www.gentaur.be/web/image/product.template/190/image_1920?unique=14d810e
(1 beoordeling)

0,00 € 0.0 EUR 0,00 € Exclusief BTW

355,00 € Exclusief BTW

info@gentaur.com

    Deze combinatie bestaat niet.

    Terms and Conditions
    30-dagen geld terug garantie
    Verzending: 2 tot 3 weken

    pET-22b plasmid

    PVT0063        2ug



    pET-22b plasmid Information

    Promoter: T7

    Replicator: pBR322

    Clone strain: DH5α

    Culture condition: 37 ℃

    Plasmid host: Escherichia coli

    Uses: protein expression, secretory expression; pET Plasmid

    Fragment type: ORF

    Fragment species: empty body

    Resistance:Amp

    Note: Low copy



    pET-22b plasmid Sequence

    atccggatatagttcctcctttcagcaaaaaacccctcaagacccgtttagaggccccaaggggttatgctagttattgctcagcggtggcagcagccaactcagcttcctttcgggctttgttagcagccggatctcagtggtggtggtggtggtgctcgagtgcggccgcaagcttgtcgacggagctcgaattcggatccgaattaattccgatatccatggccatcgccggctgggcagcgaggagcagcagaccagcagcagcggtcggcagcaggtatttcatatgtatatctccttcttaaagttaaacaaaattatttctagaggggaattgttatccgctcacaattcccctatagtgagtcgtattaatttcgcgggatcgagatctcgatcctctacgccggacgcatcgtggccggcatcaccggcgccacaggtgcggttgctggcgcctatatcgccgacatcaccgatggggaagatcgggctcgccacttcgggctcatgagcgcttgtttcggcgtgggtatggtggcaggccccgtggccgggggactgttgggcgccatctccttgcatgcaccattccttgcggcggcggtgctcaacggcctcaacctactactgggctgcttcctaatgcaggagtcgcataagggagagcgtcgagatcccggacaccatcgaatggcgcaaaacctttcgcggtatggcatgatagcgcccggaagagagtcaattcagggtggtgaatgtgaaaccagtaacgttatacgatgtcgcagagtatgccggtgtctcttatcagaccgtttcccgcgtggtgaaccaggccagccacgtttctgcgaaaacgcgggaaaaagtggaagcggcgatggcggagctgaattacattcccaaccgcgtggcacaacaactggcgggcaaacagtcgttgctgattggcgttgccacctccagtctggccctgcacgcgccgtcgcaaattgtcgcggcgattaaatctcgcgccgatcaactgggtgccagcgtggtggtgtcgatggtagaacgaagcggcgtcgaagcctgtaaagcggcggtgcacaatcttctcgcgcaacgcgtcagtgggctgatcattaactatccgctggatgaccaggatgccattgctgtggaagctgcctgcactaatgttccggcgttatttcttgatgtctctgaccagacacccatcaacagtattattttctcccatgaagacggtacgcgactgggcgtggagcatctggtcgcattgggtcaccagcaaatcgcgctgttagcgggcccattaagttctgtctcggcgcgtctgcgtctggctggctggcataaatatctcactcgcaatcaaattcagccgatagcggaacgggaaggcgactggagtgccatgtccggttttcaacaaaccatgcaaatgctgaatgagggcatcgttcccactgcgatgctggttgccaacgatcagatggcgctgggcgcaatgcgcgccattaccgagtccgggctgcgcgttggtgcggatatctcggtagtgggatacgacgataccgaagacagctcatgttatatcccgccgttaaccaccatcaaacaggattttcgcctgctggggcaaaccagcgtggaccgcttgctgcaactctctcagggccaggcggtgaagggcaatcagctgttgcccgtctcactggtgaaaagaaaaaccaccctggcgcccaatacgcaaaccgcctctccccgcgcgttggccgattcattaatgcagctggcacgacaggtttcccgactggaaagcgggcagtgagcgcaacgcaattaatgtaagttagctcactcattaggcaccgggatctcgaccgatgcccttgagagccttcaacccagtcagctccttccggtgggcgcggggcatgactatcgtcgccgcacttatgactgtcttctttatcatgcaactcgtaggacaggtgccggcagcgctctgggtcattttcggcgaggaccgctttcgctggagcgcgacgatgatcggcctgtcgcttgcggtattcggaatcttgcacgccctcgctcaagccttcgtcactggtcccgccaccaaacgtttcggcgagaagcaggccattatcgccggcatggcggccccacgggtgcgcatgatcgtgctcctgtcgttgaggacccggctaggctggcggggttgccttactggttagcagaatgaatcaccgatacgcgagcgaacgtgaagcgactgctgctgcaaaacgtctgcgacctgagcaacaacatgaatggtcttcggtttccgtgtttcgtaaagtctggaaacgcggaagtcagcgccctgcaccattatgttccggatctgcatcgcaggatgctgctggctaccctgtggaacacctacatctgtattaacgaagcgctggcattgaccctgagtgatttttctctggtcccgccgcatccataccgccagttgtttaccctcacaacgttccagtaaccgggcatgttcatcatcagtaacccgtatcgtgagcatcctctctcgtttcatcggtatcattacccccatgaacagaaatcccccttacacggaggcatcagtgaccaaacaggaaaaaaccgcccttaacatggcccgctttatcagaagccagacattaacgcttctggagaaactcaacgagctggacgcggatgaacaggcagacatctgtgaatcgcttcacgaccacgctgatgagctttaccgcagctgcctcgcgcgtttcggtgatgacggtgaaaacctctgacacatgcagctcccggagacggtcacagcttgtctgtaagcggatgccgggagcagacaagcccgtcagggcgcgtcagcgggtgttggcgggtgtcggggcgcagccatgacccagtcacgtagcgatagcggagtgtatactggcttaactatgcggcatcagagcagattgtactgagagtgcaccatatatgcggtgtgaaataccgcacagatgcgtaaggagaaaataccgcatcaggcgctcttccgcttcctcgctcactgactcgctgcgctcggtcgttcggctgcggcgagcggtatcagctcactcaaaggcggtaatacggttatccacagaatcaggggataacgcaggaaagaacatgtgagcaaaaggccagcaaaaggccaggaaccgtaaaaaggccgcgttgctggcgtttttccataggctccgcccccctgacgagcatcacaaaaatcgacgctcaagtcagaggtggcgaaacccgacaggactataaagataccaggcgtttccccctggaagctccctcgtgcgctctcctgttccgaccctgccgcttaccggatacctgtccgcctttctcccttcgggaagcgtggcgctttctcatagctcacgctgtaggtatctcagttcggtgtaggtcgttcgctccaagctgggctgtgtgcacgaaccccccgttcagcccgaccgctgcgccttatccggtaactatcgtcttgagtccaacccggtaagacacgacttatcgccactggcagcagccactggtaacaggattagcagagcgaggtatgtaggcggtgctacagagttcttgaagtggtggcctaactacggctacactagaaggacagtatttggtatctgcgctctgctgaagccagttaccttcggaaaaagagttggtagctcttgatccggcaaacaaaccaccgctggtagcggtggtttttttgtttgcaagcagcagattacgcgcagaaaaaaaggatctcaagaagatcctttgatcttttctacggggtctgacgctcagtggaacgaaaactcacgttaagggattttggtcatgagattatcaaaaaggatcttcacctagatccttttaaattaaaaatgaagttttaaatcaatctaaagtatatatgagtaaacttggtctgacagttaccaatgcttaatcagtgaggcacctatctcagcgatctgtctatttcgttcatccatagttgcctgactccccgtcgtgtagataactacgatacgggagggcttaccatctggccccagtgctgcaatgataccgcgagacccacgctcaccggctccagatttatcagcaataaaccagccagccggaagggccgagcgcagaagtggtcctgcaactttatccgcctccatccagtctattaattgttgccgggaagctagagtaagtagttcgccagttaatagtttgcgcaacgttgttgccattgctgcaggcatcgtggtgtcacgctcgtcgtttggtatggcttcattcagctccggttcccaacgatcaaggcgagttacatgatcccccatgttgtgcaaaaaagcggttagctccttcggtcctccgatcgttgtcagaagtaagttggccgcagtgttatcactcatggttatggcagcactgcataattctcttactgtcatgccatccgtaagatgcttttctgtgactggtgagtactcaaccaagtcattctgagaatagtgtatgcggcgaccgagttgctcttgcccggcgtcaatacgggataataccgcgccacatagcagaactttaaaagtgctcatcattggaaaacgttcttcggggcgaaaactctcaaggatcttaccgctgttgagatccagttcgatgtaacccactcgtgcacccaactgatcttcagcatcttttactttcaccagcgtttctgggtgagcaaaaacaggaaggcaaaatgccgcaaaaaagggaataagggcgacacggaaatgttgaatactcatactcttcctttttcaatattattgaagcatttatcagggttattgtctcatgagcggatacatatttgaatgtatttagaaaaataaacaaataggggttccgcgcacatttccccgaaaagtgccacctgaaattgtaaacgttaatattttgttaaaattcgcgttaaatttttgttaaatcagctcattttttaaccaataggccgaaatcggcaaaatcccttataaatcaaaagaatagaccgagatagggttgagtgttgttccagtttggaacaagagtccactattaaagaacgtggactccaacgtcaaagggcgaaaaaccgtctatcagggcgatggcccactacgtgaaccatcaccctaatcaagttttttggggtcgaggtgccgtaaagcactaaatcggaaccctaaagggagcccccgatttagagcttgacggggaaagccggcgaacgtggcgagaaaggaagggaagaaagcgaaaggagcgggcgctagggcgctggcaagtgtagcggtcacgctgcgcgtaaccaccacacccgccgcgcttaatgcgccgctacagggcgcgtcccattcgcca
    //





    Caution:
    1.  This product is FOR RESEARCH USE ONLY!
    2.  The item is lyophilized form, Please take the powder plasmid by centrifugation at 5000rpm/min for 1min. Add 20μl ddH2O in to the tube of plasmid.

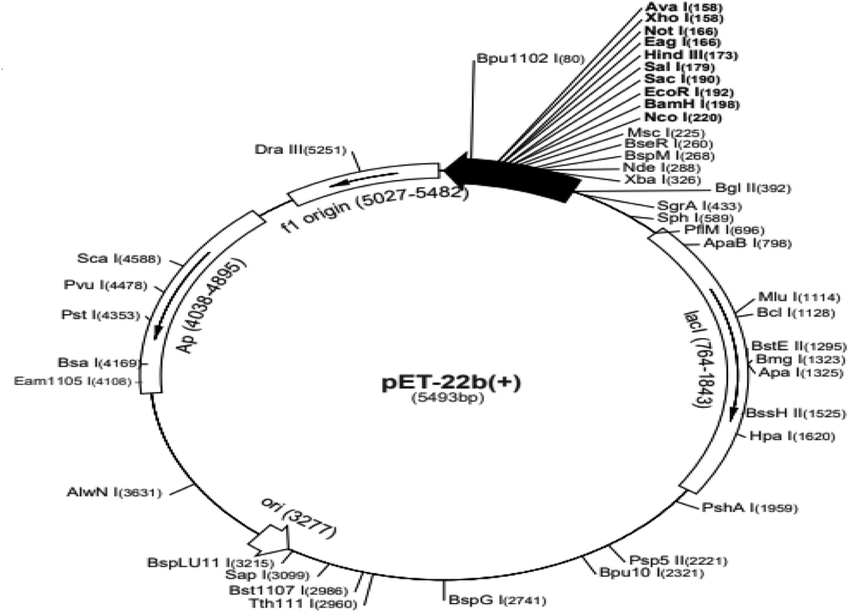

    The pET-22b(+) vector is a widely used plasmid vector for protein expression in Escherichia coli. It is part of the pET (plasmid for expression by T7 RNA polymerase) system developed by Novagen (now part of Merck). Here are the key structural components and features of the pET-22b(+) vector:

    Structural Components and Features

    1. Origin of Replication (ori):
      • pBR322-derived ori: Allows replication of the plasmid within E. coli.
    2. T7 Promoter:
      • T7 Promoter: A strong promoter recognized by T7 RNA polymerase, driving high-level transcription of the gene of interest.
    3. Multiple Cloning Site (MCS):
      • MCS: Contains various restriction sites for the insertion of the gene of interest. These sites are designed to allow flexible cloning strategies.
    4. lac Operator (lacO):
      • lac Operator: Provides additional regulation of transcription by binding the lac repressor (LacI), which can be induced by IPTG (Isopropyl β-D-1-thiogalactopyranoside).
    5. T7 Transcription Terminator:
      • T7 Terminator: Ensures efficient termination of transcription, increasing the stability of mRNA.
    6. RBS (Ribosome Binding Site):
      • Shine-Dalgarno Sequence: Positioned upstream of the start codon to facilitate efficient translation initiation in E. coli.
    7. Signal Sequence:
      • PelB Leader Sequence: Directs the expressed protein to the periplasmic space in E. coli for possible improved folding and easier purification.
    8. Tag Sequences:
      • His-Tag: Typically a 6x histidine tag used for affinity purification of the expressed protein using nickel-NTA (Ni-NTA) agarose.
      • Additional Tags: Some versions may include additional tags for detection or purification purposes.
    9. Antibiotic Resistance Marker:
      • Ampicillin Resistance Gene (bla): Encodes beta-lactamase, allowing for selection of plasmid-containing cells with ampicillin.
    10. F1 Origin:
      • F1 Origin: Allows for the production of single-stranded DNA if a helper phage is provided.
    11. Cloning and Expression Control Elements:
      • lacI Gene: Encodes the lac repressor, which binds to the lac operator and inhibits transcription in the absence of IPTG. This provides tight control over expression.
      • T7lac Promoter: A hybrid promoter that combines elements of the T7 promoter and the lac operator for tighter control of expression.
